BS 5852 Flammability Tester with Stainless Steel Frame 35mm Flame Height and 450X450X300mm Testing Jig for Upholstered Furniture

BS 5852 Flammability Tester with Stainless Steel Frame 35mm Flame Height and 450X450X300mm Testing Jig for Upholstered Furniture

Merknaam: Skyline
Modelnummer: SL-S34
Moq: 1
Betalingsvoorwaarden: T/T,L/C,D/A,D/P,Western Union,MoneyGram
Leveringsvermogen: 15 sets per maand
Gedetailleerde informatie
Plaats van herkomst:
China
Certificering:
CE, Rosh, Calibration
Kleine testframe van roestvrij staal:
450 x 300 x 150 mm
Inwendige afmetingen van de rugleuning:
450 ± 2 × 450 ± 2 mm
Inwendige afmetingen van het stoelframe:
450 ± 2 × 300 ± 2 mm
Grote testmachine van roestvrij staal:
450 x 450 x 300 mm
De luchtstroom van butane:
45 ± 2 ml/min (bij 25°C)
Vlamhoogte:
35 mm
Buitenste diameter van de verbrandingsbuis van roestvrij staal:
Buitenste diameter: 8,0±0,1 mm Binnenwijdte: 6,5±0,1 mm Lange: 200+/-5 mm
Verpakking Details:
multiplex kast
Levering vermogen:
15 sets per maand
Markeren:

Stainless Steel Frame Flammability Tester

,

35mm Flame Height BS 5852 Tester

,

450X450X300mm Testing Jig Furniture Flammability Tester

Productbeschrijving
BS 5852 Flammability Tester for Upholstered Furniture and Foam Testing
This professional testing equipment evaluates the ignitability of furniture assemblies when exposed to specific heat sources, providing essential reference data for furniture design and manufacturing.

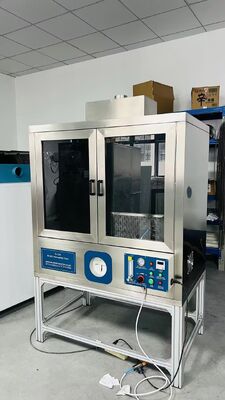

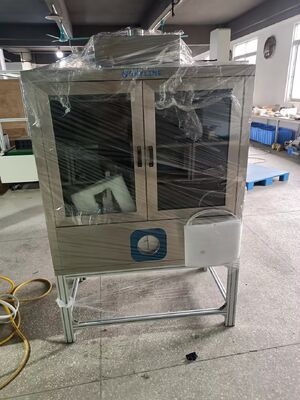

BS 5852 Flammability Tester with Stainless Steel Frame 35mm Flame Height and 450X450X300mm Testing Jig for Upholstered Furniture 0 BS 5852 Flammability Tester with Stainless Steel Frame 35mm Flame Height and 450X450X300mm Testing Jig for Upholstered Furniture 1
Design Overview

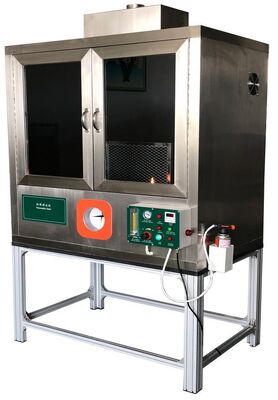

BS 5852 Flammability Tester with Stainless Steel Frame 35mm Flame Height and 450X450X300mm Testing Jig for Upholstered Furniture 2
Product Application
This machine simulates the ignitability of specific furniture assembly components when exposed to controlled heat sources, delivering critical reference data for furniture design and manufacturing processes.
Testing Standard
BS 5852
Technical Specifications
Small Stainless Steel Testing Frame: 450×300×150mm
Inner dimensions of backrest frame 450±2×300±2mm
Inner dimensions of chair frame 450±2×150±2mm
Large Stainless Steel Testing Jig: 450×450×300mm
Inner dimensions of backrest frame 450±2×450±2mm
Inner dimensions of chair frame 450±2×300±2mm
The airflow of butane 45 ± 2mL / min (when 25℃)
Flame height 35mm
Stainless steel combustion tube specifications Outer diameter: 8.0±0.1mm
Inner diameter: 6.5±0.1mm
Length: 200±5mm
Optional Accessories
  • No. 0 Fire source: Cigarettes - Length: 68mm, Diameter: 8mm, Weight: 1g, Combustion speed: 50mm/12.03min
  • White polyester cloth - BS 5852
  • Wooden Frame - BS 5852
  • No. 5 Wooden Frame - BS 5852
  • No. 6 Wooden Frame - BS 5852
  • No. 7 Wooden Frame - BS 5852
  • Flame-retardant foam - BS 5852
  • Combustible foam - BS 5852
  • CaCI2.6H20 - BS 5852
  • NaHCO3 - BS 5852
  • Wetting agent - BS 5852
  • Nozzles - BS 5852
