UL94 Flammability Tester with Horizontal and Vertical Configurations Compliance with IEC 60695-11-4 and UL94 Flame Chamber

Merknaam:	SKYLINE
Moq:	1
Prijs:	Negotiate
Betalingsvoorwaarden:	T/T
Leveringsvermogen:	1 SET/MONTH

Gedetailleerde informatie

Productbeschrijving

Gedetailleerde informatie

Plaats van herkomst:

China

Certificering:

Het verwarmen temperatuurwaaier:

700°C

Steekproefdiameter:

(bijvoorbeeld 125 mm x 13 mm)

Controlesoftware:

Zelf-ontwikkelde speciale software

Verpakking Details:

Hoofdstuk van polyhout

Levering vermogen:

1 SET/MONTH

Markeren:

Horizontal and Vertical Configurations Flammability Tester

Compliance with IEC 60695-11-4 Burning Testing Equipment

UL94 Flame Chamber UL94 Tester

Productbeschrijving

Test Flam 500W / 50W UL94 Horizontal and Vertical Flammability Tester

Professional burning testing equipment with 700℃ heating temperature, compliant with IEC 60695-11-4 standards for evaluating plastic material flammability in consumer electric devices and appliances.

Product Overview

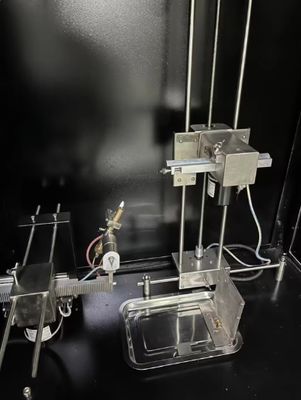

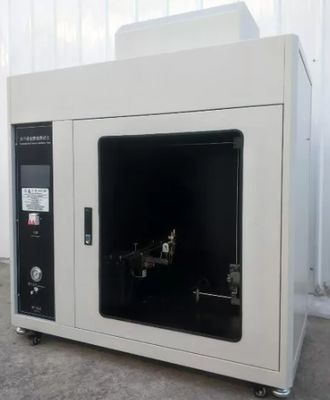

This UL 94 flame chamber testing machine features both horizontal and vertical configurations for comprehensive flammability analysis. Constructed with durable stainless steel and a black interior for optimal visibility, the unit includes a large sliding window, adjustable specimen support, and precision gas flow controls.

Main Components

Combustion test chamber: Sealed or ventilated controllable box (≥0.5m³ volume) made of high-temperature resistant stainless steel
Standard burner: Bunsen burner generates precise flames (50W flame height: 20±1mm)
Sample fixture: Adjustable to exact horizontal or vertical testing positions
Gas supply system: Supports ≥98% pure methane with high-precision flow meters and pressure gauges (gas not included)
Timing device: ≥0.1s accuracy for measuring flame application and afterflame durations
Measuring tools: Includes specialized flame height gauges and rulers

Testing Standards Compliance

UL 94-2006
IEC 60695-11-3
IEC 60695-11-4
UL94HB: Horizontal Burning Test
V-0,1,2: 20mm Vertical Burning Test
94-5VA,B: 500W(125mm) Vertical Burning Test
94VTM-0,1,2: Thin Material Vertical Burning Test
94HBF,94HF-1,2: Horizontal Burning Foamed Material Test
IEC 60695-11-10: 50 W horizontal/vertical flame test methods
IEC 60695-11-20: 500 W flame test methods

Technical Specifications

Parameter	500W (5V class)	50W (HB/V class)
Test Flame	500W (V-0,V-1,V-2 classification)	50W (V-0,V-1,V-2 classification)
Burner Tube	Φ 9.5mm±0.3mm	Φ 9.5mm±0.3mm
Burning Angle	0°,20°,45°	0°,20°,45°
Thermocouple	Type K (Ni/Cr - Ni/Al)	Type K (Ni/Cr - Ni/Al)
Thermocouple Size	0.5 mm	0.5 mm
Standard Copper Block	9mm±0.01mm, 10g±0.05g	5.5mm±0.01mm, 76g±0.01g
Time for Temperature Increase	100°C→700°C: 54s±2s	100°C→700°C: 44s±2s
Gas Flow	965±32ml/min	105±10ml/min
Gas Supply	Methane, ≥98% purity	Methane, ≥98% purity
Water-column	125m±5mm	<10mm
Test Time	54±2s	44±2s
Flame Height Indicator	40±1mm	20±1mm
Volume Of Chamber	>0.5m³, black interior	>0.5m³, black interior
Conform to standard	UL94, IEC60695-11-3, IEC60695-11-20	UL94, IEC60695-11-4, IEC60695-11-10
