Name: ISO 8307 Spong & Foam Ball Rebound Tester with 460mm or 500mm Drop Height and 16.8g Steel Ball for Accurate Rebound Rate Measurement
Brand: SKYLINE INSTRUMENTS CO.,LTD
SKU: Vervaardiging van elektrische voertuigen
Price: 4,500.00 USD
Availability: InStock

Thuis Producten Meubilair testen van apparatuur

ISO 8307 Spong & Foam Ball Rebound Tester with 460mm or 500mm Drop Height and 16.8g Steel Ball for Accurate Rebound Rate Measurement

Productdetails:

Plaats van herkomst:	CHINA
Merknaam:	SKYLINE
Certificering:	CE
Modelnummer:	Vervaardiging van elektrische voertuigen

Betalen & Verzenden Algemene voorwaarden:

Min. bestelaantal:	1
Prijs:	negoitable
Verpakking Details:	multiplexkast
Levertijd:	15 werkdagen
Betalingscondities:	T/t
Levering vermogen:	1 eenheid/maand

Contact

Gedetailleerde productomschrijving

Hoogte laten vallen:	460 mm of 500 mm	Standaard steekproefgrootte:	100 mm (l) × 100 mm (w) × 50 mm (h)
Weergave:	LCD -aanraakscherm	Nauwkeurigheid:	<1>
Printer:	Ja
Markeren:	460mm Drop Height Spong & Foam Ball Rebound Tester , 500mm Drop Height Sponge Elasticity Tester , 16.8g Steel Ball Foam Rebound Rate Tester

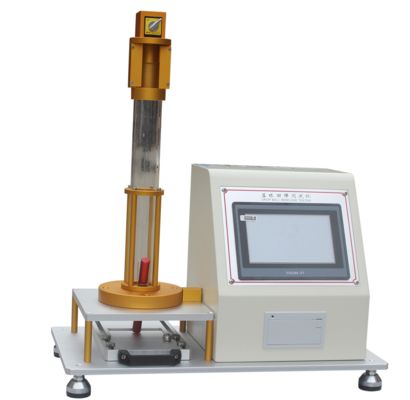

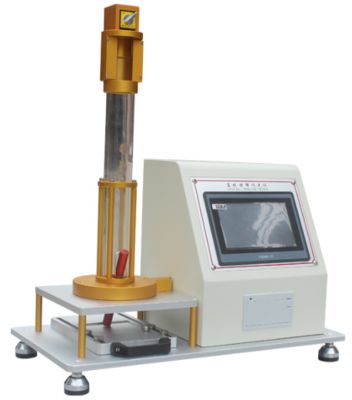

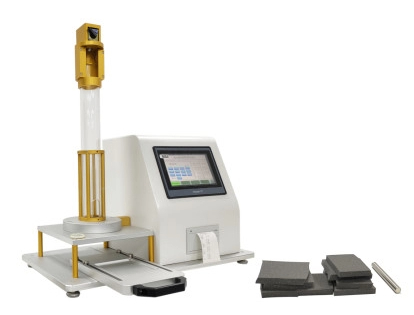

ISO 8307 Sponge & Foam Ball Rebound Tester Machine

Sponge Elasticity & Rebound Rate Tester

Machine Introduction

This rebound tester is designed and manufactured according to ASTM D3574, ISO 8307, and GB/T6670-97 standards. It precisely measures the falling ball resilience of soft polyurethane foams by calculating the maximum rebound height of a steel ball and determining the percentage of the falling height. The rebound rate accurately represents the foam's resilience characteristics.

Key Features

Microprocessor-controlled operation with touch screen interface
Chinese language display for easy operation
Built-in printer for test data output
High measurement accuracy (<1.5%)
Automatic calculation of average rebound rate
Safe, reliable, and precise testing mechanism

Technical Parameters

Parameter	Specification
Steel ball drop distance	GB 460±0.5%mm or ASTM/ISO 500±0.5%mm
Steel ball diameter	￠16±0.05 mm
Steel ball weight	16.8g ± 1.5 g
Accuracy	<1.5%
Display	LCD Touch Screen interface
Standard sample size	100mm(L) × 100mm(W) × 50mm(H)
Printer	Built-in
